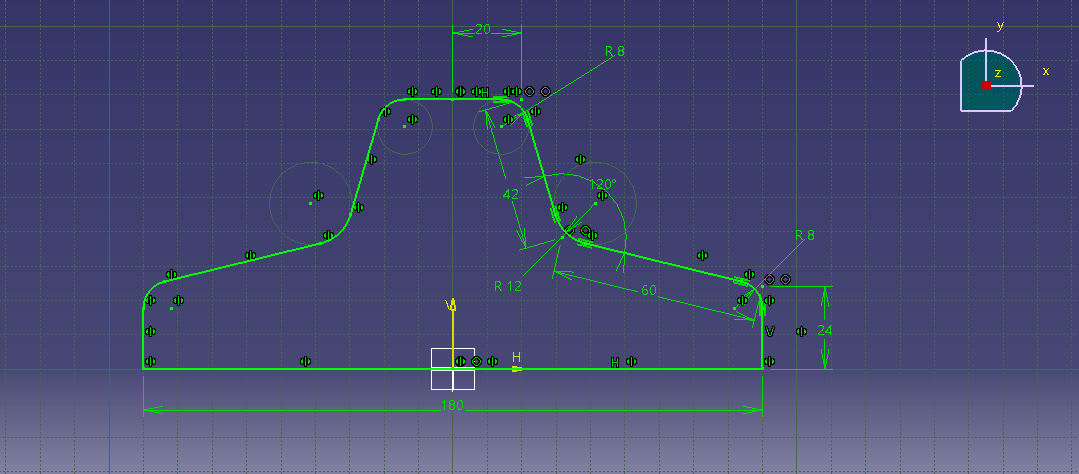

Create sketch on XY plane as shown below with given dimensions:
Exit workbench.
Click “Pad” icon and extrude the selected sketch up to 20mm. by using “Mirrored extent”:

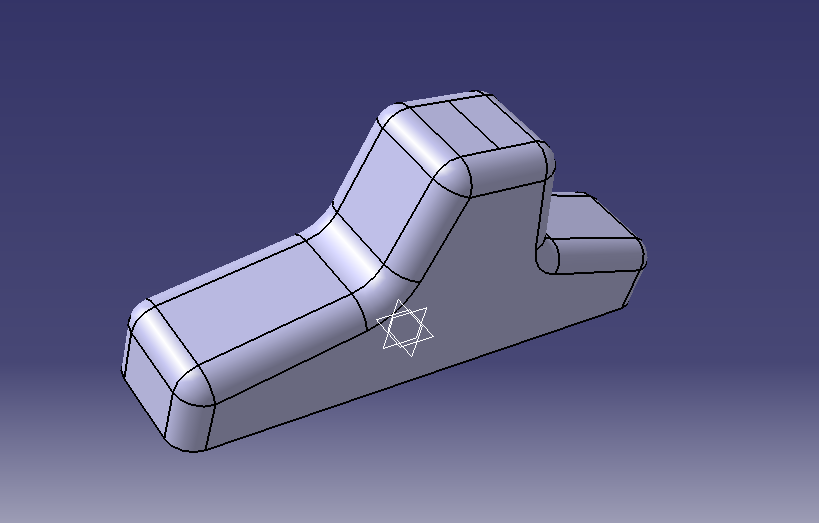

Create fillets with defined dimensions as shown below (r= 8 mm):

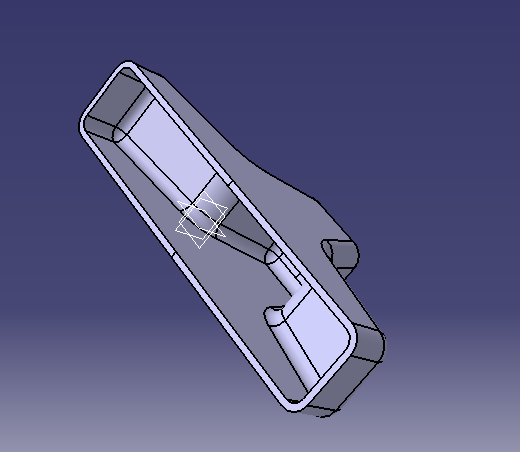

Use “Shell” command to empty inside of the part with defined thickness:

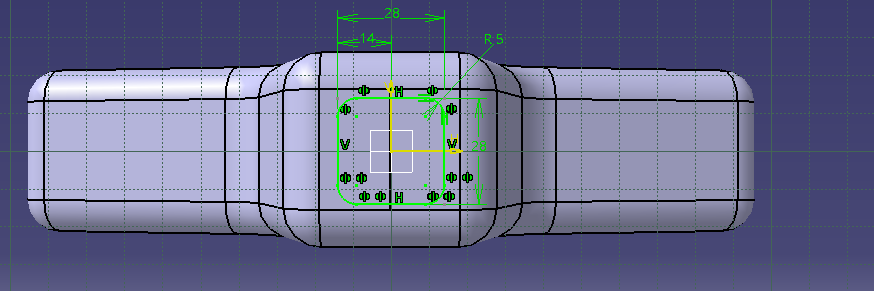

Now select ZX plane and create a sketch on top of the part with specified dimensions:
Exit workbench.

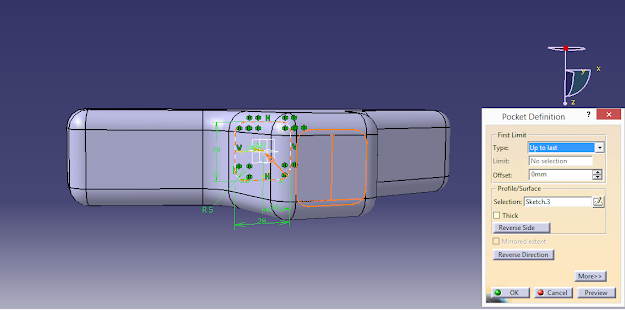

Use “Pocket” to remove sketched part and press “OK”:
